- Action: To Do List item A0135 - Replace all engine seawater coolant anti syphon loop T connection plastic components with marine rated components.
- Action: To Do List item A0136 - Replace all engine seawater coolant anti syphon loop hoses and clamps.
- Completed: 22 November 2017
- Cost: $205.52

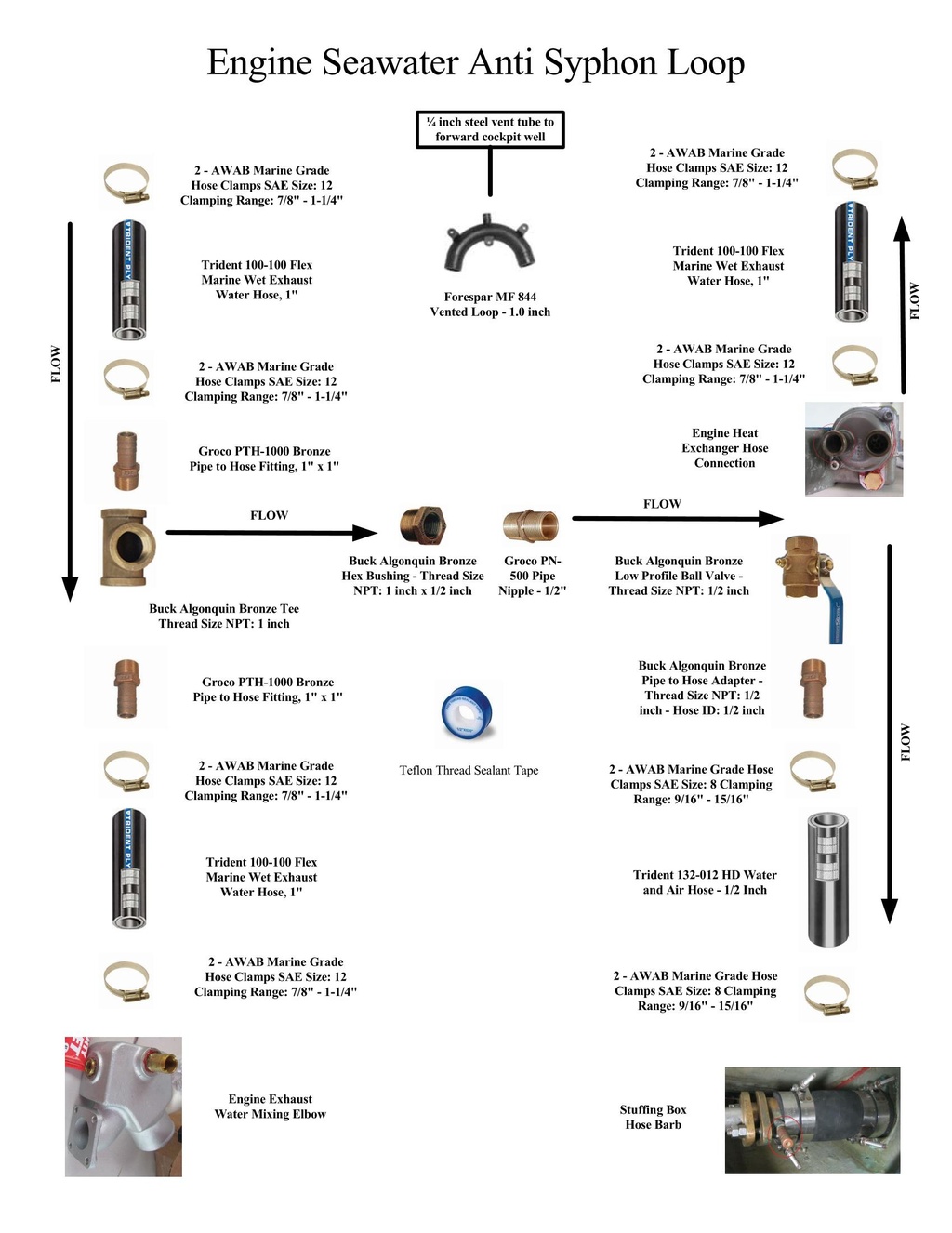

A pictorial diagram depicting the complete new system installed was created to identify and illustrated the parts and material needed.
The following items were ordered and received by ocean freight shipment.
| P/N | Item | Q | Each | Total |
| PTH-1000 | Bronze Pipe to Hose Fitting, 1" x 1" | 2 | $7.64 | $15.28 |
| 00106100T | Buck Algonquin Bronze Tee Thread Size NPT: 1 inch | 1 | $18.99 | $18.99 |
| 00BBV50LP | Buck Algonquin Bronze Low Profile Ball Valve - Thread Size NPT: 1/2 inch | 1 | $15.99 | $15.99 |
| 00HN50 | Buck Algonquin Bronze Pipe to Hose Adapter - Thread Size NPT: 1/2 inch - Hose ID: 1/2 inch | 1 | $7.99 | $7.99 |
| 00114100050 | Buck Algonquin Bronze Hex Bushing - Thread Size NPT: 1 inch x 1/2 inch | 1 | $6.99 | $6.99 |
| PN-500 | Groco PN-Series Pipe Nipples - 1/2" | 1 | $6.49 | $6.49 |
| 100-100 | Trident Engine Intake Water & Heater Hose - 1 Inch | 10 | $7.19 | $71.90 |
| 132-012 | Trident HD Water and Air Hose - 1/2 Inch | 10 | $1.88 | $18.80 |
| 316024 | AWAB Marine Grade Hose Clamps SAE Size: 8 Clamping Range: 9/16" - 15/16" | 4 | $2.33 | $9.32 |
| 316032 | AWAB Marine Grade Smooth Band Hose Clamp Band Width: 1/2", Clamping Range: 7/8" - 1-1/4" SAE size 12 | 12 | $2.59 | $31.08 |
| S520 | Teflon Thread Sealant Tape | 1 | $2.69 | $2.69 |
| $205.52 |

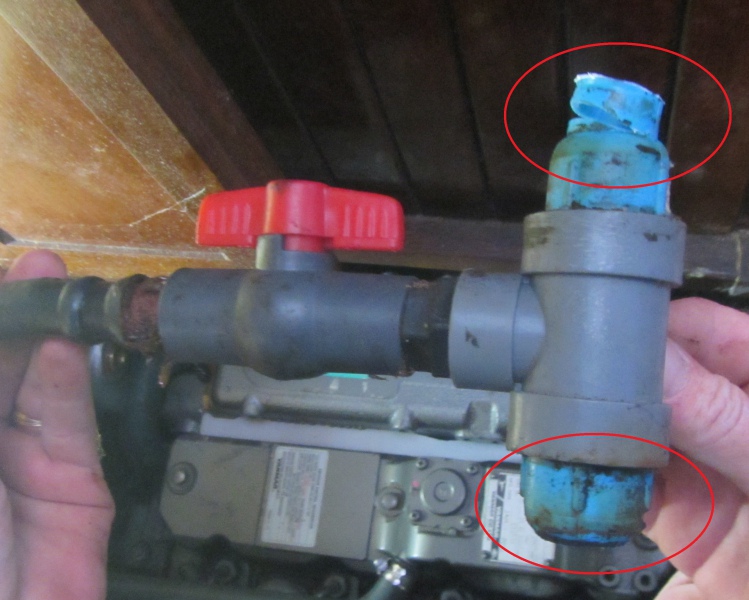

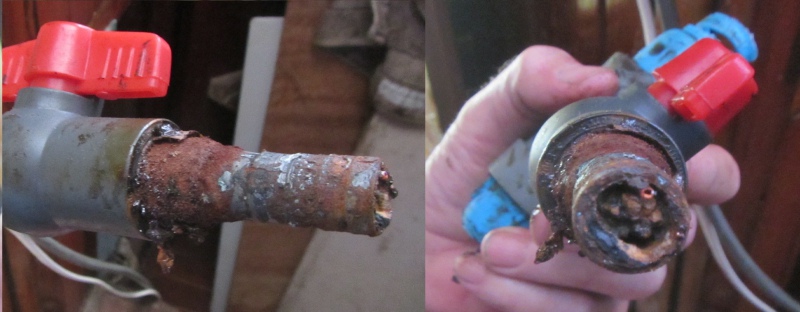

As the pictures below depict: The existing plastic engine seawater coolant anti syphon loop T connection was removed and discovered that not only was the bottom plastic hose barb broken, the top plastic hose barb was also broken. Also discovered that the outlet hose barb that is suppose to route water to the stuffing box to lubricate the packing gland was completely blocked with what appeared to be rusted metal flakes and other unknown material - whatever it was, it was concrete-like-hard and was not able to be removed. Might explain why the stuffing box packing glands were found to be burnt black and glass-like hard.

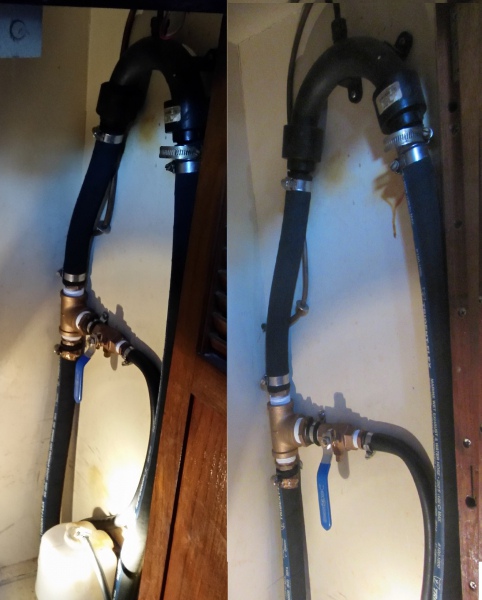

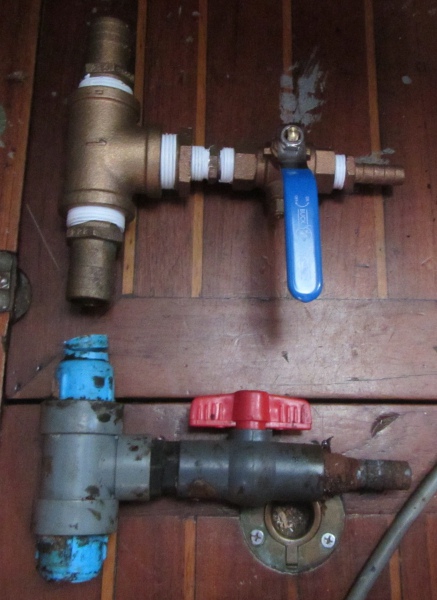

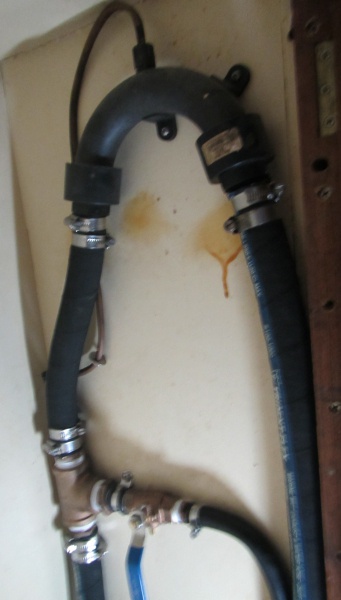

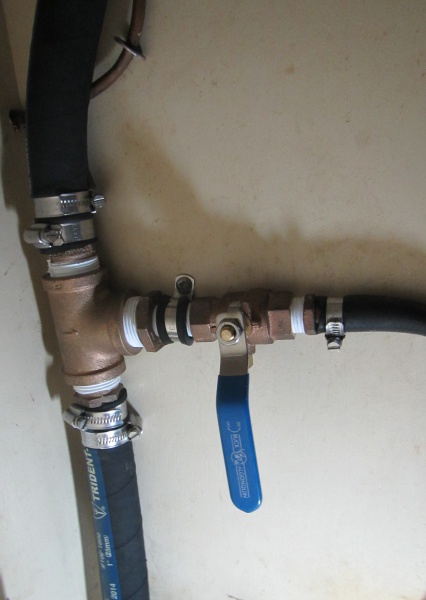

The new bronze anti syphon loop T connection is shown with the original broken plastic anti syphon loop T connection for comparison. The new components and hoses were installed as depicted in the above diagram. Additional holes were cut in the wood floor to accommodate the new hoses and not violate the hose bend radius. A steel rubber cushioned clamp was placed around the bronze pipe nipple on the new T connection and secured with a screw to the side wall. The 1/2-inch outlet hose was connected to the stuffing box hose barb and secured with two clamps.
